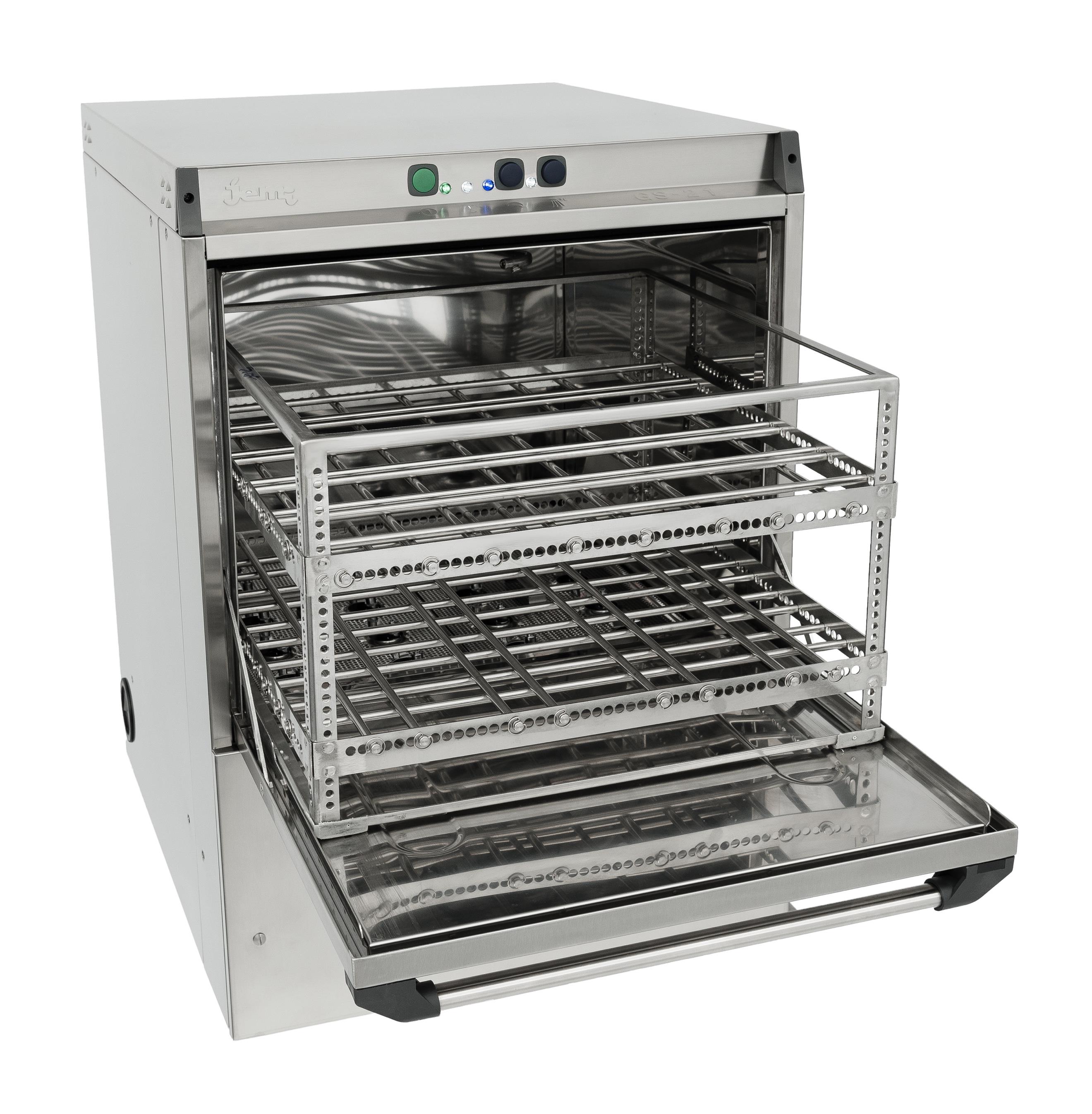

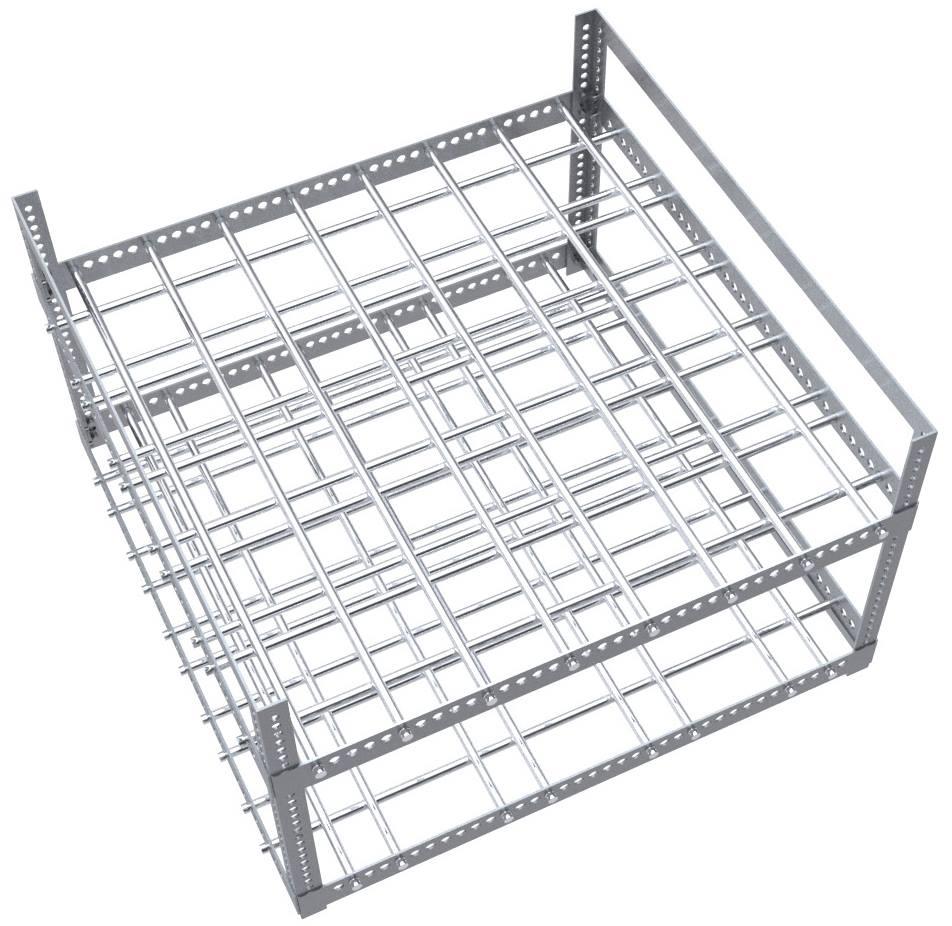

Suitable for all bottles from 0.1 l to 2.0 l (or bottle height of 400 mm), beer barrels of up to 30 litres in EURO or DIN standard as well as beverage crates.
The washing and rinsing system which was specially developed for the cleaning of bottles, guarantees that all kinds of bottles (beer bottles, milk bottles, juice bottles, water bottles, yoghurt jars and much more) are washed germ-free inside and outside.

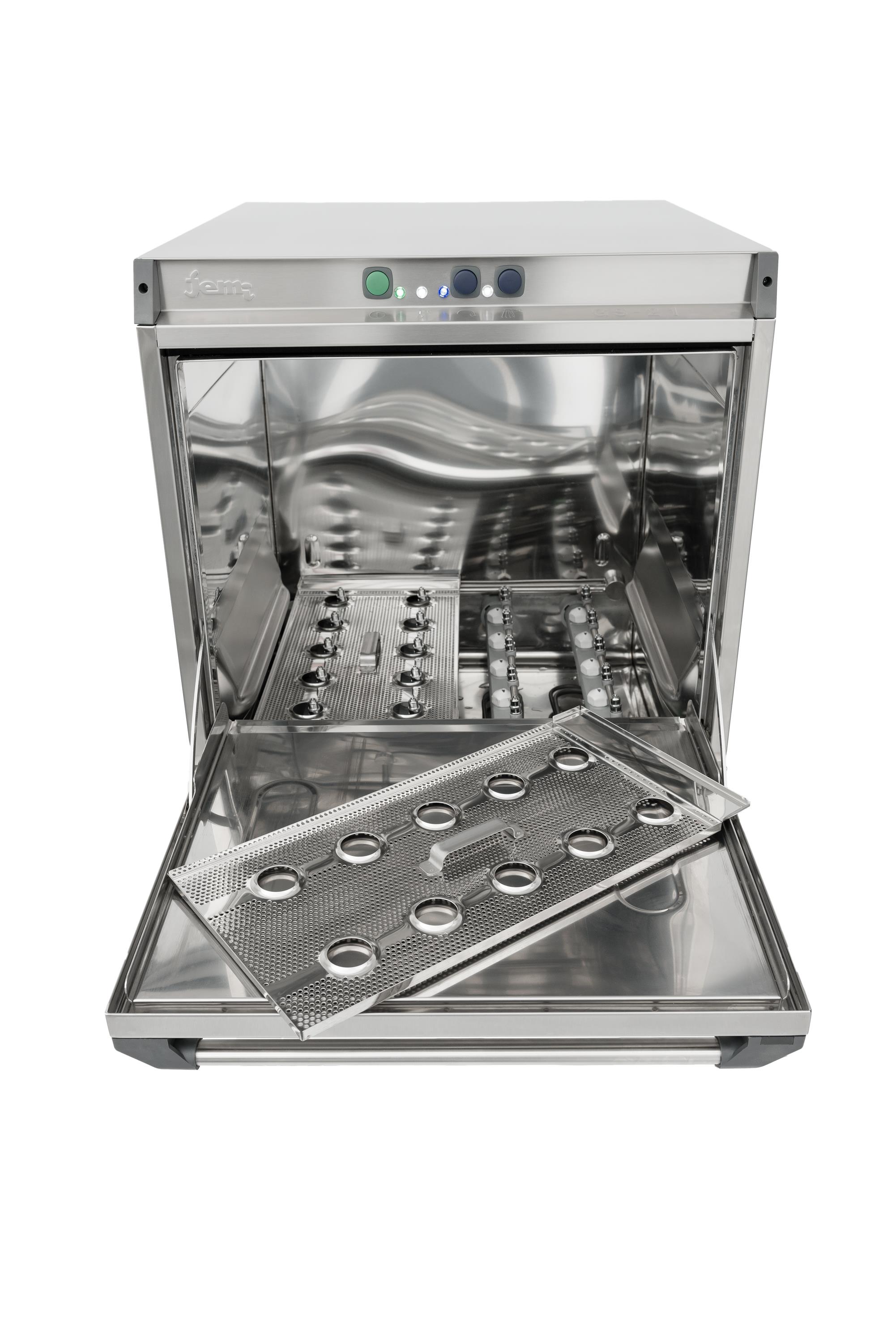

2 separate rinsing processes (washing and rinsing) guarantee hygiene at highest level also for small quantities of wash items. Efficient and cost efficient. The strainer makes sure that detached labels from the bottles do not enter into the detergent solution.
The washing program takes 6 minutes and 30 seconds. In a washing cycle of 6 minutes barely 2000 litres of detergent solution are circulated in the system. Depending on the type of bottle up to 54% of the circulation rate are flushed in the bottle and the remainder is flushed outside around the bottle. During the rinsing cycle about 8.7 l of fresh water are flushed in and around the bottles.
Functional principle:

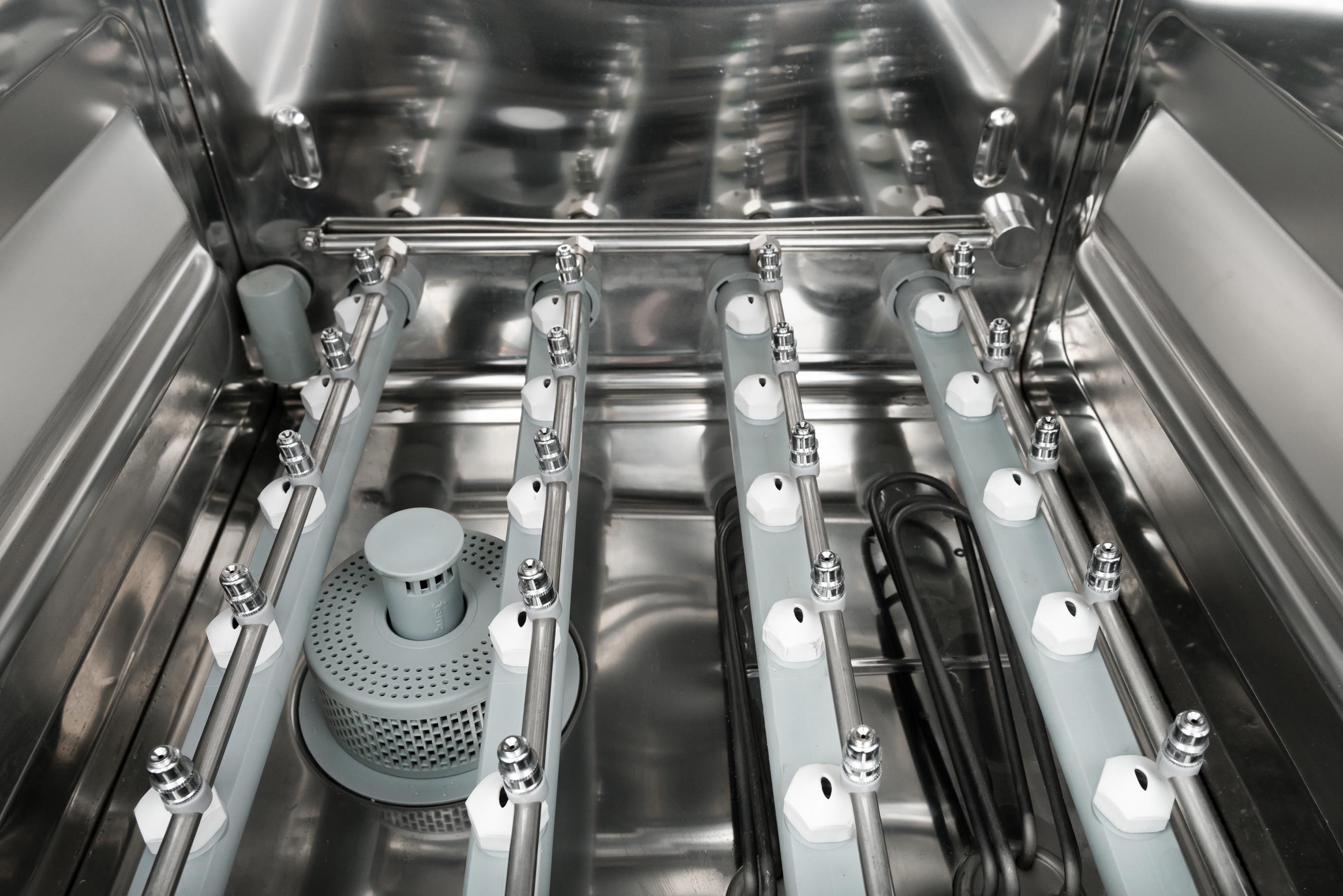

The fresh water is controlled with a magnetic valve and conveyed into the washing chamber. Supported by a built-in booster pump the fresh water is sprayed into the washing chamber with the bottom rinsing nozzles.
At the same time chemicals for the detergent solution are conveyed into the washing chamber.
There are 2 heaters with a power of 4.5 kW each in the washing chamber. As soon as a filling level in the tank has been attained, the magnetic valve will switch on and
the heater will start heating the water to about 57°C. If there is too little current available to the customer it would be possible to disconnect the heater. This would
ensure that there will be waiting times between the individual washing cycles. A control lamp shows that the desired temperature has been attained.
By pressing the start button the detergent solution (29 l) in the tank will be circulated in the washing chamber. The washing pump conveys 330 l /min. of

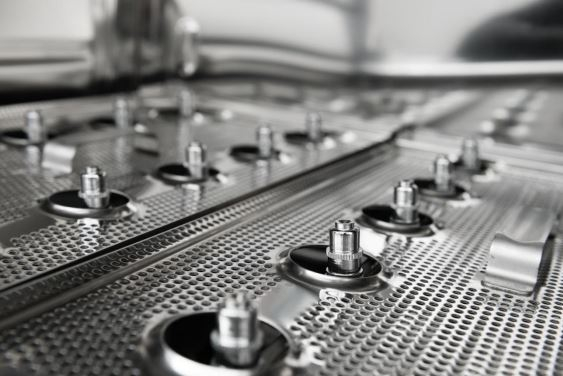

detergent solution in the washing chamber and cleans the bottles inside and outside. In each washing cycle a quantity of fresh water of about 8.7 l is rinsed in and around
the bottles by means of special nozzles. This way, the detergent solution is rinsed from the inside of the bottles and also required chemicals are conveyed into the tank
in order to guarantee another hygienic cleaning.
After the washing cycle the machine will automatically heat the detergent solution to the preset washing temperature. A control lamp shows that the machine is readyfor-operation and another washing cycle can be performed.
The chemicals which are specially produced for our bottle washing machine can be used as liquid detergent to clean beer bottles or as enzyme powder
to clean milk bottles and yoghurt jars.
The customer is free to use any other chemicals besides the one recommended by us. However, in this case we cannot be held liable for the sterility of the bottles or for the complete rinsing out of the detergent solution.

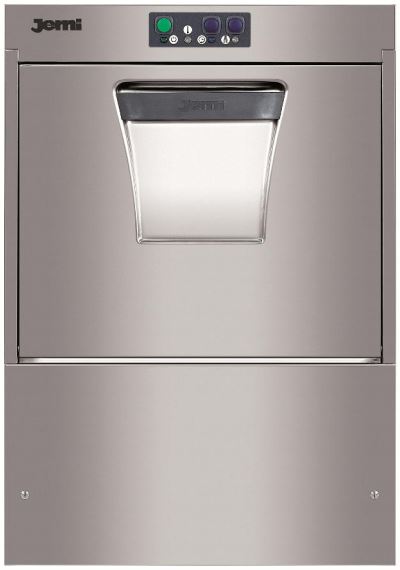

The new operating panel allows an easy and safe operation of the machine.

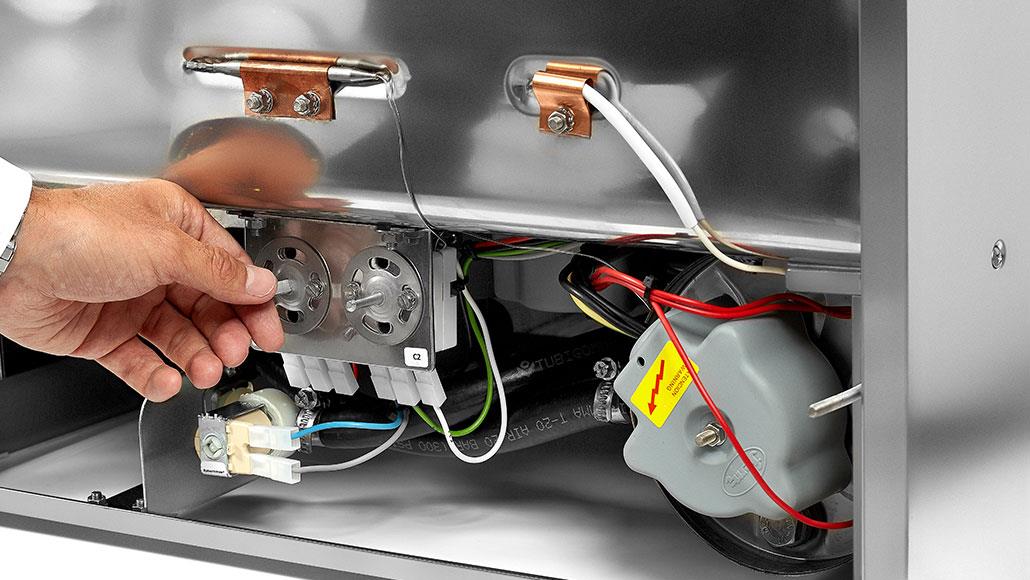

The whole technology of the bottle washing machine is electromechanical. No electronics or boards included. Therefore, the machine is easy to operate and a rapid troubleshooting is guaranteed.
An automatic dosing for the liquid detergent is installed as standard.
The new booster pump guarantees optimum fresh water rinsing after the washing cycle. The recirculating pump for the detergent solution has a circulation rate of 330 l.
By using the conversion KIT for barrel cleaning it is possible to convert the bottle washing machine to a barrel cleaning machine within a few minutes. Rapidly and cost-efficient just as the whole bottle washing machine.
